Rock basket / river bank protect gabion basket/ manufacture factory


Gabion Introduction

Gabions are rectangular wire mesh baskets filled with rock at the project site to form flexible, permeable,

monolithic structures such as retaining walls for commercial, industrial and road projects. They are also

used for erosion control, bank stabilization, channel linings and weirs.


Gabion box

1. Gabion materials: hot dipped galvanized wire and PVC coated galvanized wire , PVC color : darkgree,

gray ,black

2. Gabion mesh wire: 2.0mm,2.4mm,2.7mm,3.2mm,3.4mm,4mm

3. Gabion selvedge wire diameter: 2.4mm,2.7mm,3mm,3.4mm,4mm

4. Gabion mesh hole : 6*8cm,8*10cm,10*12cm,12*15cm

5. Gabion Tie wire/lacing wire : 2.2mm, 3%,5%,8% of weight

6. Gabion Zinc coating : 220-290g/m2

7. Gabion size : 2x1x1m,2x1x0.5m,6x2x0.3m,as your request

8. Gabion With diaphragms

Gabion specification

Material

1) galvanized steel wire:

high quality low carbon steel wire, steel wire diameter is 2.0 MM to 4.0 MM, the tensile strength of steel

wire shall be not less than 300 mpa, the surface of steel wire is hot galvanized, the thickness of the

galvanized layer produced isaccording to customer requirements, galvanized quantity is up to a maximum

of 300 g/m2.

2) aluminum zinc - 5% - mixed rare earth alloy wire:

(also called Gore van) wire, this is a kind of international new material in recent years,corrosion resistance

is three times bigger than the traditional pure galvanized, steel wire diameter can be up to 2.0 MM to 2.0

MM, the tensile strength of steel is not less than 380 mpa.

3) the plastic coated galvanized steel wire:

high quality low carbon steel wire, on the surface of steel wire wrapped a layer of PVC or PE protective

layer, and then woven into a variety of specifications of gabion mesh.This protective layer will increase

significantly in the high pollution in the environment protection, and through the choice of different color,

can make the fusion and the surrounding environment.

4) aluminum zinc - 5% - mixed rare earth alloy wire with pvc coated

Weaving in machines



Cut to pieces and install to be a box

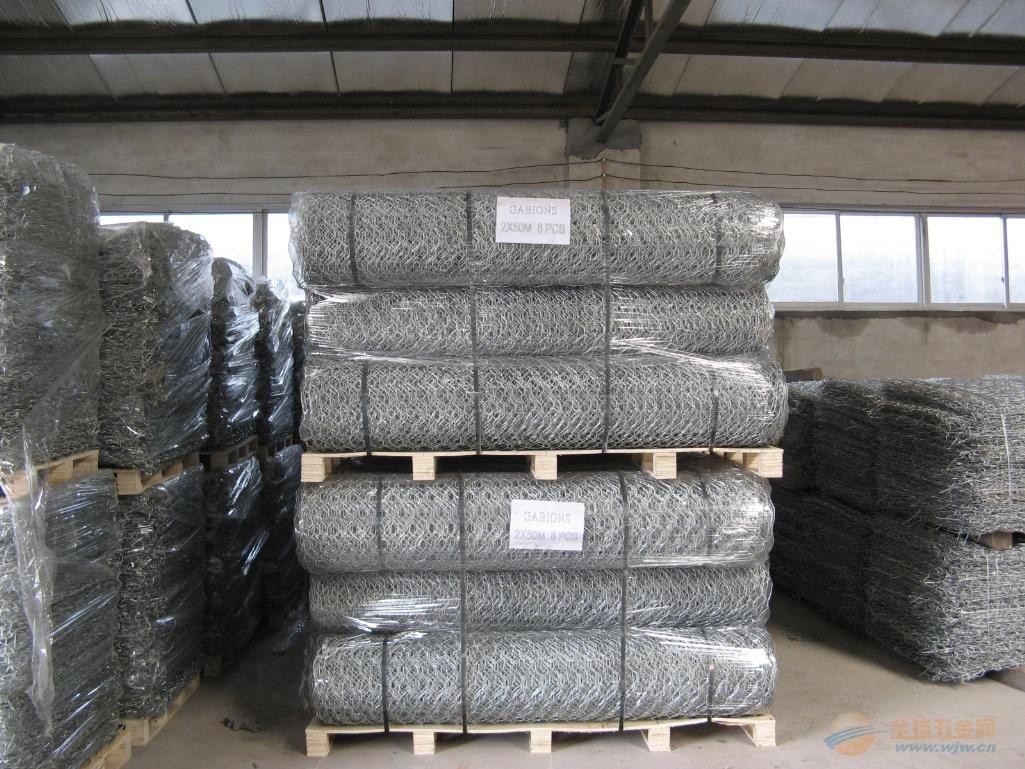

Packing & Shipping

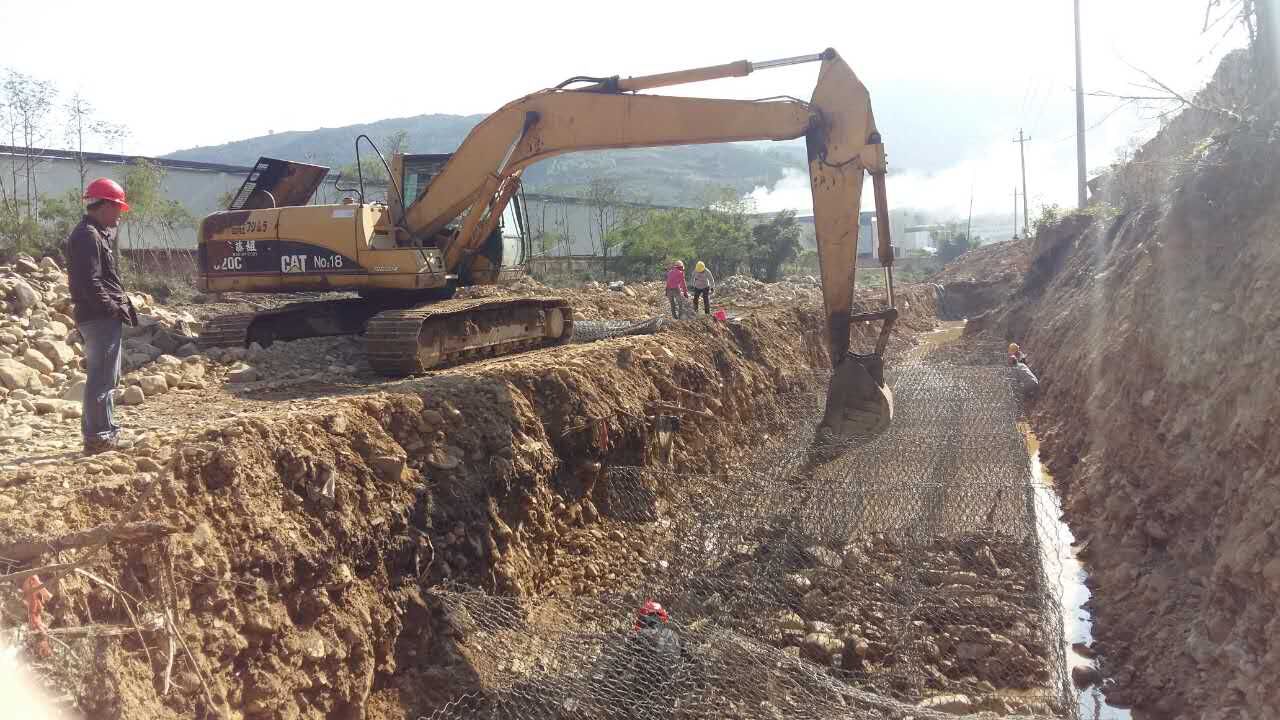

Open and install in constuction site


Filling with stones


Used and Application

• Gabion wire mesh is used for slope and foundation pit support
• Prevention or rock breaking ,slope planting
• Water and soil protection
• High mesh fence,protection of dam and seawall against erosion ,etc

Our normal package is 50-100 gabion wire mesh/per bundle ,wrapped with 2 steel strips, also

according to your need.

If you are interested in our products,please feel free contact us
