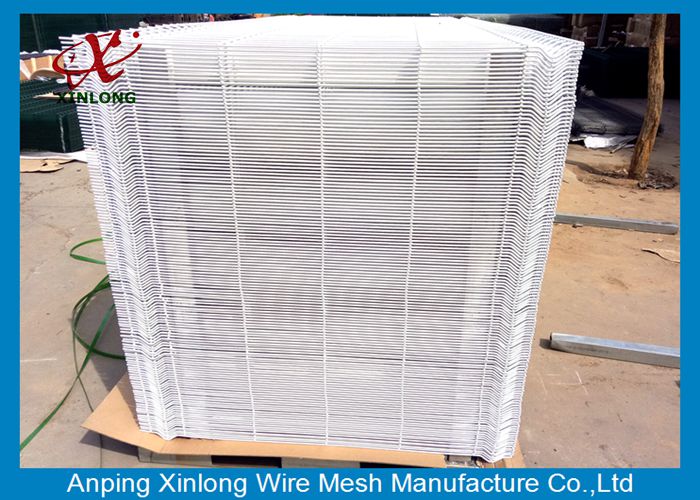

    Convenient Installation Welded Wire Mesh Sheets , Pure White 3D Wire Mesh Fence

    Ask Lasest Price
    Brand Name : XINLONG
    Model Number : XJF-01
    Certification : ISO9001:2008
    Price : negotiate
    Payment Terms : Western Union, L/C, T/T
    Supply Ability : 1000 per week
    Delivery Time : 6-7 work days
    • Product Details
    • Company Profile

    Convenient Installation Welded Wire Mesh Sheets , Pure White 3D Wire Mesh Fence

    Convenient Installation PVC/PE Dipped Coating Pure White 3D Wire Mesh Fence


    Product details:


    Also known as 3D bending fence, which has a grid structure, beautify and durable vision, color and diverse, high strength, steel is good, beautify shape characteristics. Both it has security fence, and has beautify the role .Unique embedded hook design, fence post and form a solid fence overall. The product design won the French industrial design award and obtained a patent.


    Wire Dia.Mesh SizePanel WidthPanel HeightFold No.Post’s height
    FixⅠFixⅡFix Ⅲ

    4.0mm

    4.5mm

    5.0mm

    5.5mm

    6.0mm



    200*50mm

    200*55mm

    200*60mm

    200*65mm


    2.0m

    2.255m

    2.5m

    3.0m

    0.635m20.90.71.0
    0.835m21.20.91.2
    1.035m21.41.11.4
    1.235m21.61.31.6
    1.435m21.81.5-----
    1.535m31.91.6-----
    1.635m32.01.7-----
    1.735m32..21.8-----
    1.835m32.31.9-----
    1.935m32.42.0-----
    2.035m42.52.1-----
    2.235m42.82.3-----
    2.435m43.02.5------

    Note:1.Fix Ⅰ:Buried in the ground.

    2.Fix Ⅱ: Installed with bottom base or feet.



    Design Advantage:


    1. Attractive appearance

    Different design from common fence, Round edges, Triangle edges and square edges make the fence more beautiful and elegant.


    2. Built in rigidity

    The rolled beam profile at the top and bottom edge of each panels results in maximum rigidity.


    3. Longevity

    The polyester coating is able to guarantee longevity. With different color can make the fence become markedly.


    4. User friendly

    Edge fence is easy to install and dismantle, Friendly top and bottom design, Safety and have low maintenance.

    profile at the top and bottom edge of each panels results in maximum rigidity.

    High Anti-Corrosion:


    Using high quality iron rod as raw material, the welded panel, after galvanization, powders primer, and powders top coating, it can resist the corrosive and ultraviolet radiation very strongly.


    Surface TreatmentMin.Max.
    Electric Gal.20g/m260g/m2
    Hot dipped Gal.35g/m2700g/m2
    Powders Sprayed coating100microns120microns
    PVC/PE dipped coating400microns600microns

    Range Of Application:

    • Private properties and recreational sites;
    • Sports facilities, pitches, tennis courts, playgrounds;
    • Warehouses, logistics bases - military facilities and sites;
    • Housing estates and parking lots;
    • Industrial and commercial buildings;Public places.

    Choice Of Colors:


    Every RAL colour desired can be delivered, for example the colours corresponding to your corporate design.
    - Common colors
    - Dark Green RAL6005
    - Pure White RAL9010
    - Stone Grey RAL7030
    - Jet Black RAL9005
    - Anthracite Grey RAL7016
    - Other RAL colors are available


    Packing:


    Fence Panel:

    1) It has rubber mat at the bottom of the pallet to avoid the pallet destroyed the panels;

    2) It has 4 metal corners to keep the pallet more strong;

    3) It has metal plate under the plastic bandage to reduce the apressure of fence panels;

    4) It has wooden plate at the top of fence panel which can protect the fence panels avoid being crushed by other pallets.


    Fence Post:

    1) The caps have been installed on the top of post, which reduce your labor cost and installing time;

    2) Each post are packed by a long plastic bag avoiding damaged by friction;

    3) All posts are packed by metal pallet for loading and unloading.
