Brand Name : | XINLONG |
Model Number : | Q195 |
Certification : | ISO9001 |
Price : | Negotiate |
Payment Terms : | L/C, T/T, Western Union |
Supply Ability : | 20000 sets per month |
Delivery Time : | 8-15 days |

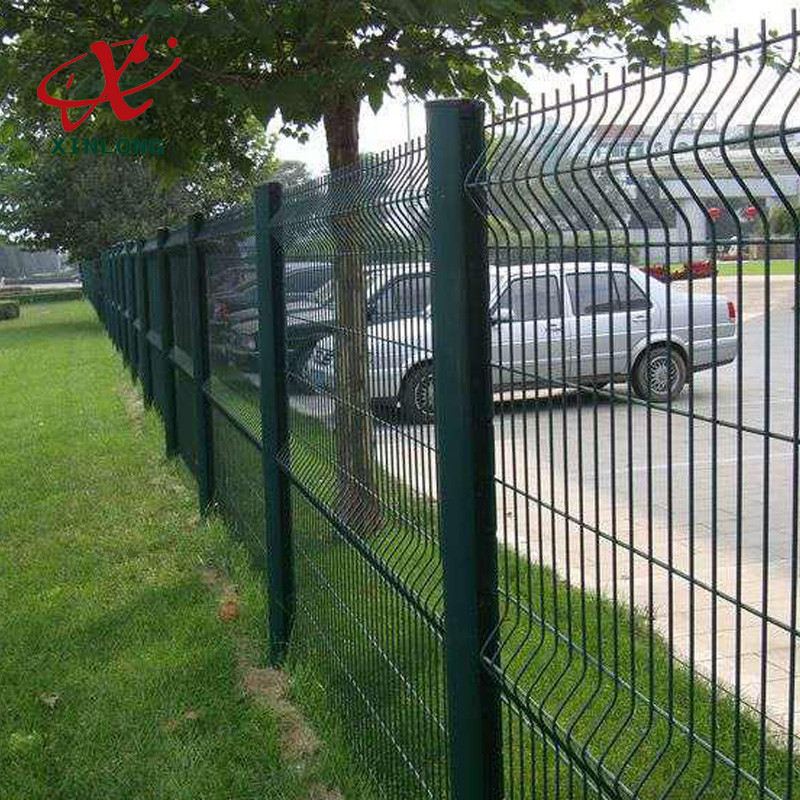

200*50mm Dark Green PVC Coated 3D Curved Wire Mesh Fence for Farm
1.Specification
Wire Diameter | Mesh Size | Panel Width | Panel Height | Fold Number | Post’s height | Post Model | |
Fix I | Fix II | ||||||
4.0mm 4.5mm 5.0mm 5.5mm 6.0mm | 200*50mm 200*55mm 200*60mm 200*65mm | 2.0m 2.255m 2.5m 3.0m | 0.635m | 2 | 0.9 | 0.7 | XLFP-01 XLFP-02 XLFP-05 |
0.835m | 2 | 1.2 | 0.9 | ||||
1.035m | 2 | 1.4 | 1.1 | ||||
1.235m | 2 | 1.6 | 1.3 | ||||
1.435m | 2 | 1.8 | 1.5 | ||||
1.535m | 3 | 1.9 | 1.6 | ||||
1.635m | 3 | 2.0 | 1.7 | ||||
1.735m | 3 | 2.2 | 1.8 | ||||
1.835m | 3 | 2.3 | 1.9 | ||||
1.935m | 3 | 2.4 | 2.0 | ||||
2.035m | 4 | 2.5 | 2.1 | ||||
2.235m | 4 | 2.8 | 2.3 | ||||
2.435m | 4 | 3.0 | 2.5 |
FIXⅠ:Buried in the ground. FIXⅡ :Installed with bottom base or feet.
2.Surface Treatment
Surface Treatment | Min. | Max. |
Electric Gal. | 20g/m2 | 60g/m2 |
Hot dipped Gal. | 35g/m2 | 700g/m2 |
Powders Sprayed coating | 100microns | 120microns |
PVC/PE dipped coating | 400microns | 600microns |
3. Application
Road and Transit (Highway, Railway, Road, City Transit)
Science Industry Zone ( Factory, Industry Zone, Sightseeing Zone, New pattern farm)
Private grounds ( Courtyard, Villadom )
Public grounds ( Park, Zoo, Train or Bus Station, Lawn )
Commercial grounds ( Corporation, Hotel, Supermarket )
4. Design Advantage
Extraordinary and fashionable design, convenient installation. The fence panels are joined with post without any clamps, and it is easy and convenient. It could insert into the sew of concrete base of 40mm width. Usually there is the plastic caps on the top of the post. The upper examine and repair is very easy, and the posts are easy to replace.
![]() |
