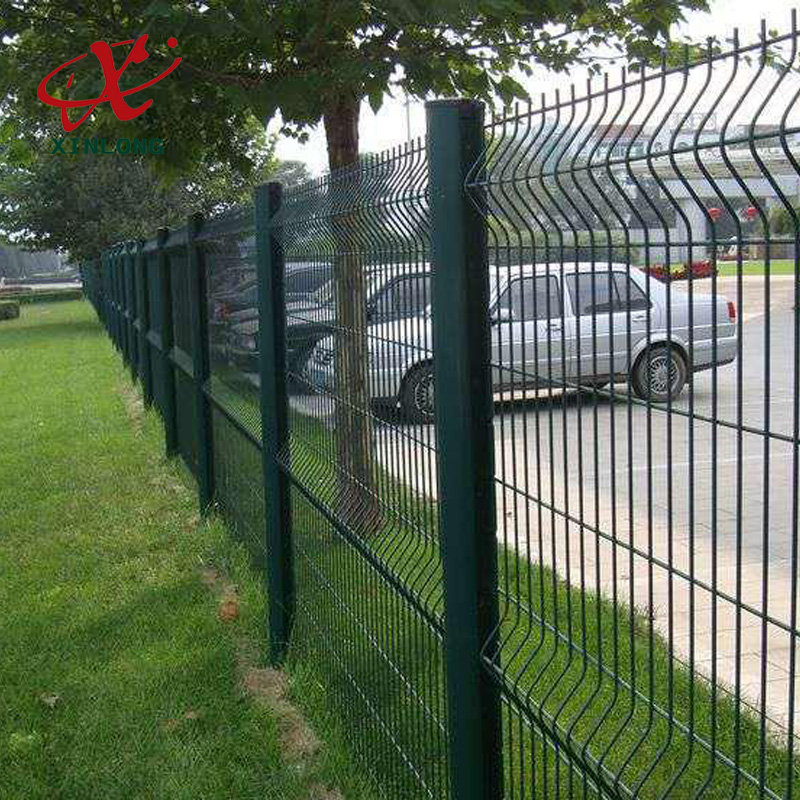

3D Wire Mesh Fence Manufacturer

Characteristic & Description

Extraordinary and fashionable design, convenient installation, hith strong quality.

The panels are welded by high quality cold drawn steel wire, after hot dipped galvanized or weld the panel with cold drawn wire directly, then to be galvanized. With the galvanized wire panels, it needs to inspect the zinc layer and others, only the ligible items could be coated. It includes the powders sprayed coating or PVC/PE dipped coating. Then the products could last 15 years.

The panels with bends can make it more stable and stronger.

Panel Panel Size 1.23 x 2.5m; 1.53 x 2.5m; 1.83 x 2.5m; 2.03 x 2.5m

Wire Diameter 3.8mm; 4mm; 5mm

Mesh Opening 50 x 200mm; 55 x 200mm

Folds No. 2; 3; 4

Surface Treatment Galvanized + Powder / PVC coated

Colors Green (RAL 6005); Grey (RAL 7016); Brown (RAL 8014); Black (RAL 9005); White (RAL 9010)

Post Square Post 40 x 60mm; 40 x 40mm; 60 x 60mm

Peach Post 50 x 70mm; 70 x 100mm

Round Post 32mm; 38mm; 42mm; 48mm

Thickness 1.0mm; 1.2mm; 1.6mm

Accessories Rain Caps; Scews & Nuts Metal / Plastic

Popular Specifications:

Fix I: Buried in the ground. Fix II: Installed with bottom base or feet.

Design Advantage:

Extraordinary and fashionable design, convenient installation. The fence panels are jointed with the post without any clamps, and it is easy and convenient. It could insert into the sew of concrete base of 40mm width. Usually there is the plastic caps on the top of the post. The upper examine and repair is very easy, and the posts are easy to replace.

High Anti-Corrosion:

Using high quality iron rod as raw material, the welded panel, after galvanization, powders primer, and powders top coating, it can resist the corrosive and ultraviolet radiation very strongly.

Range of Application:

Road and transit(highway, railway, road, city transit)

Science & Industry Zone(factory, industry zone, sightseeing zone, new pattern farm)

Private grounds(courtyard, villadom)

Public grounds(park, zoo, train or bus station, lawn)

Commercial grounds(corporation, hotel, supermarket)

Quality Certificate:

Our company passed through the ISO9001:2000 quality controlling. Satisfied Service to our clients always is what we do firstly, together with our perfect management, competitive price, good quality of goods and advanced equiment. We have full confidence in our cooperation in future.

Packing &Transportation

Xinlong Wire Mesh Manufacture Co., Ltd. deals with all kinds of wire mesh and relative hardware, post, clamps and so on. Our company was founded in 1989, having some son companies, including wire-drawing, panel-welding, mesh-weaving, galvanizing, PVC-coating and so on. As a leading manufacturer and self exporter, we hope to establish long-term, friendly business relations with you in future, with our full sincerity and confidences.

The competitive products we deal with mainly include:
<1> Wire mesh fence used for highway, railway, garden, city construction (wire mesh fence, garden fence, chain link fence, grillage, grid, welded wire panel) and its accessories, such as barbed wire, razor wire, fencing posts, caps, clamps, connectors, bolts & nuts and so on.

<2> Welded wire mesh/welded wire mesh fence/welded wire mesh panel, chicken (hexagonal) wire mesh, hot dipped galvanized & electric galvanized iron wire (binding wire), black annealed wire, PVC wire, square hole wire mesh, wire netting, cutting wire, insect (aluminum, fiberglass, polyester) window screens, expanded plated wire mesh, chain link fence, crimped wire mesh, supermarket wire mesh shelf/standing, black wire cloth, brass wire mesh, red copper wire mesh, phosphor bronze wire mesh, common nails and so on. We can also manufacture any special products as the merchants' request.

<3> We also are able to operate all security protecting system project, which are made of fence, barbed wire, razor wire and so on.

In order to improve the quality to meet European Standard, we built an advanced full automatic powders coating line two years ago. Till today, it is still the advanced in the wire mesh fence level in China. Welcome to visit our company.

Satisfied service to our clients always is what we do firstly, together with our perfect management, competitive price, good quality of goods and advanced equipment. We have full confidence in our cooperation in future.
